CSD7 Series

Details

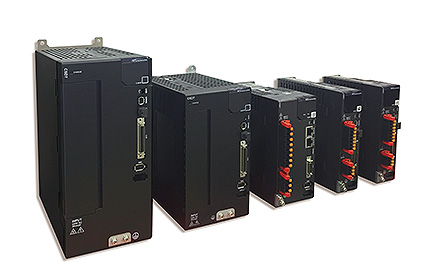

CSD7 series servo drive have a various power range such as from 100W to 5kW. There are two kinds of servo drive, one is Pulse/Analog type that is operated by Pulse command for position control or Analog command for Velocity/Torque control, the other is Network type that is operated by EtherCAT communication.
The features of CSD7 series have been improved as below. Thanks to this improvement, CSD7 series can be applied to high precision & high speed equipment (Carving machine, CNC, Chip mounter) as well as simple equipment that requires just movement, while CSD7 make faster the setup time of equipment and can lower its maintenance expenses. We hope that your equipment would be upgraded using this advanced CSD7 series.
  • Provides high performance to maximize productivity of equipment
  • Advanced Velocity Bandwidth 2kHz
  • Real-time Resonance filter for Vibration Suppression
  • Provide System Analysis Tool(Bode Plot)
  • Provide the high resolution motor with 23bit encoder
  • Improved Control Accuracy at low speed
  • Improvement for user convenience to provide a lower TCO
  • No Gain-Tuning
  • High-speed & Real-time Motion Control based on EtherCAT network(Standard CoE)
  • Provide Index Control that can be operated without additional controller(128 points)
  • Provide 2 I/O input channels for high speed position registration
  • Provide powerful PC interface(RSWare)
  • Improvement of various functions and product reliability
  • Provide capacity of 100W~5kW as 200V Class, 5 product sizes available
  • Provide STO (Safe Torque Off) as a safety function
  • 3rd Party Linear Motor can be used
  • A serial communication such as USB, Modbus is available
  • Provide Zero Stacking(Small Capacity)
  • Provide of 2 installation methods, Wall Mount(All Capacity) and Rack Mount(Small Capacity)
  • Provide international safety standards certification (CE, NRTL/C, KC, RoHS)
